Plasma torch trafimet A101 plasma cutting torch and A101 torch
parts
Our company produces :
1 . MIG / MAG , CO2 : Binzel 14AK , 15AK ,24KD , 36KD , 501D , Panasonic 180A , 200A , 350A , 500A , Bernard 200E , Bernard 300E Bernard 400E , Bernard 600E ,Tweco 2# , Tweco 3# , Tweco 4# , Tweco 5# , Fronius AW4000 , AW5000 , AL3000 , AL4000 , Saf welding torch , Miller , and tregaskiss and gas nozzle,contact tip , contact tip holder , swan neck , gas
diffuser liner etc .
2 . Tig : WP12 , WP9 , WP17 , WP18 , WP26 welding torches and torch head (F / FV / V / P) , collet , collet body , gas lens
, ceramic nozzle , aluminal nozzle , long / mediu / short cap etc.
3 . Air plasma cutting : P80 , P160 , PT31 , AG60 , SG55 , JG60 , JG100 ,Trafimet serise , Hypertherm , and Thermal dynamics cutting torches , torch head , nozzle , electrodes , tips ,
ceramic shield cap , white wheel , swirl ring etc .
4 . cable joint , earth clamp
5 . welding helmet , electorde holder
6 . tungsten electrode
| 1.Plasma torch trafimet A101 plasma cutting torch and A101 torch
parts view: |
| 2 . Plasma torch trafimet A101 plasma cutting torch and A101 torch
parts family torch technology data: |
| Technical | Rating | Duty Cycle | Air Pressure | Standard Length | N.W | Packing Size |
| S45Plasma cutting torch | 40A | 60% | 4.5-5.5 bar | 5M | 3.5KG | 34*34*6cm |
| S75Plasma cutting torch | 70A | 60% | 4.5-5.5 bar | 5M | 4.5KG | 34*34*6cm |
| S105Plasma cutting torch | 100A | 60% | 4.5-5.5 bar | 5M | 4.5KG | 34*34*6cm |
| A141Plasma cutting torch | 140A | 100% | 4.5-5.5 bar | 5M | 4.5KG | 34*34*7cm |
| CB150 air plasma torch | 150A | 60% | 4.5-5.5 bar | 5M | 4.5KG | 34*34*7cm |
| Trafimet plasma cutting product |
| trafimet s45 torch and parts | trafimet s75 torch and parts |
| trafimet s105 torch and parts | trafimet S125 torch and parts |
| trafimet A101 torch and parts | trafimet A141 torch and parts |
| trafimet A151 torch and parts | trafimet CB50 torch and parts |
| trafimet CB70 torch and parts | trafimet CB150 torch and parts |
| 3.Plasma torch trafimet A101 plasma cutting torch and A101 torch
parts Item No: |

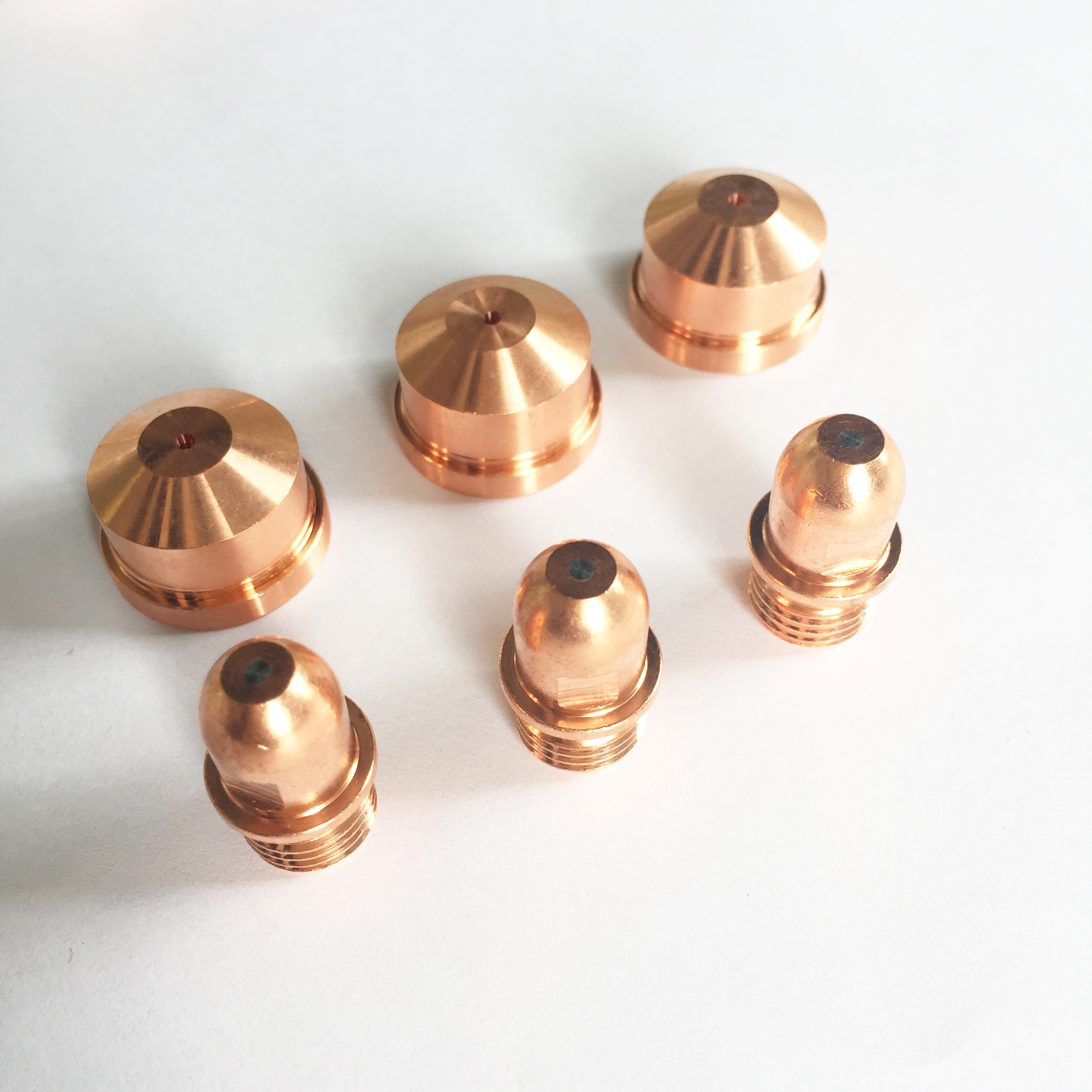

| trafimet a101 torch and parts |
| Description | Standard No. |
| Torch head | PF0155 |
| Electrode | PR0101 |
| Long electrode | PE0101 |
| Nozzle 1.1mm | PD0101-11 |
| Nozzle 1.4mm | PD0101-14 |
| Nozzle 1.7mm | PD0101-17 |
| Nozzle 1.9mm | PD0101-19 |
| Long nozzle 1.4mm | PD0117-14 |
| Long nozzle 1.7mm | PD0117-17 |
| Long nozzle 1.9mm | PD0117-19 |
| Shiled | PC0109 |
| The whole torch-5M |
| 4.Plasma torch trafimet A101 plasma cutting torch and A101 torch
parts packing |
. 1 piece Plasma torch trafimet A101 plasma cutting torch and A101 torch
parts packed in a small box
. then packed in a box(box size 34*34*7CM)
